CP3 Pumps - Diesel Pump Element Disassembly Tool

SKU: DX3230157
Compatibility: Bosch CP3 Diesel Fuel Injection Pumps
Brand: Diesel Xperts
Category: Diesel Diagnostic Tools & Fuel System Service Equipment

Product Overview

The Diesel Xperts 3230157 Element Disassembly Tool is designed for safe and efficient removal of internal elements, such as pistons and sleeves, from Bosch CP3 diesel fuel injection pumps. This tool allows technicians to service high-pressure pumps without damaging internal components.

Important: This tool is sold individually. Most complete disassembly procedures require a set of three (3) tools to be used simultaneously on the pump body.

What's Included

• Handle: Provides controlled pressure for disassembly
• Support Disk: Rests against the pump housing to stabilize the tool
• Tool Base: Slides into the piston port for alignment and support

Key Features

• Compatible with Bosch CP3 high-pressure diesel injection pumps
• Ideal for removing internal pump elements like pistons and sleeves
• Prevents damage during disassembly of sensitive components
• Built from high-strength, precision-machined steel
• Professional-grade tool used in diesel repair shops and training centers

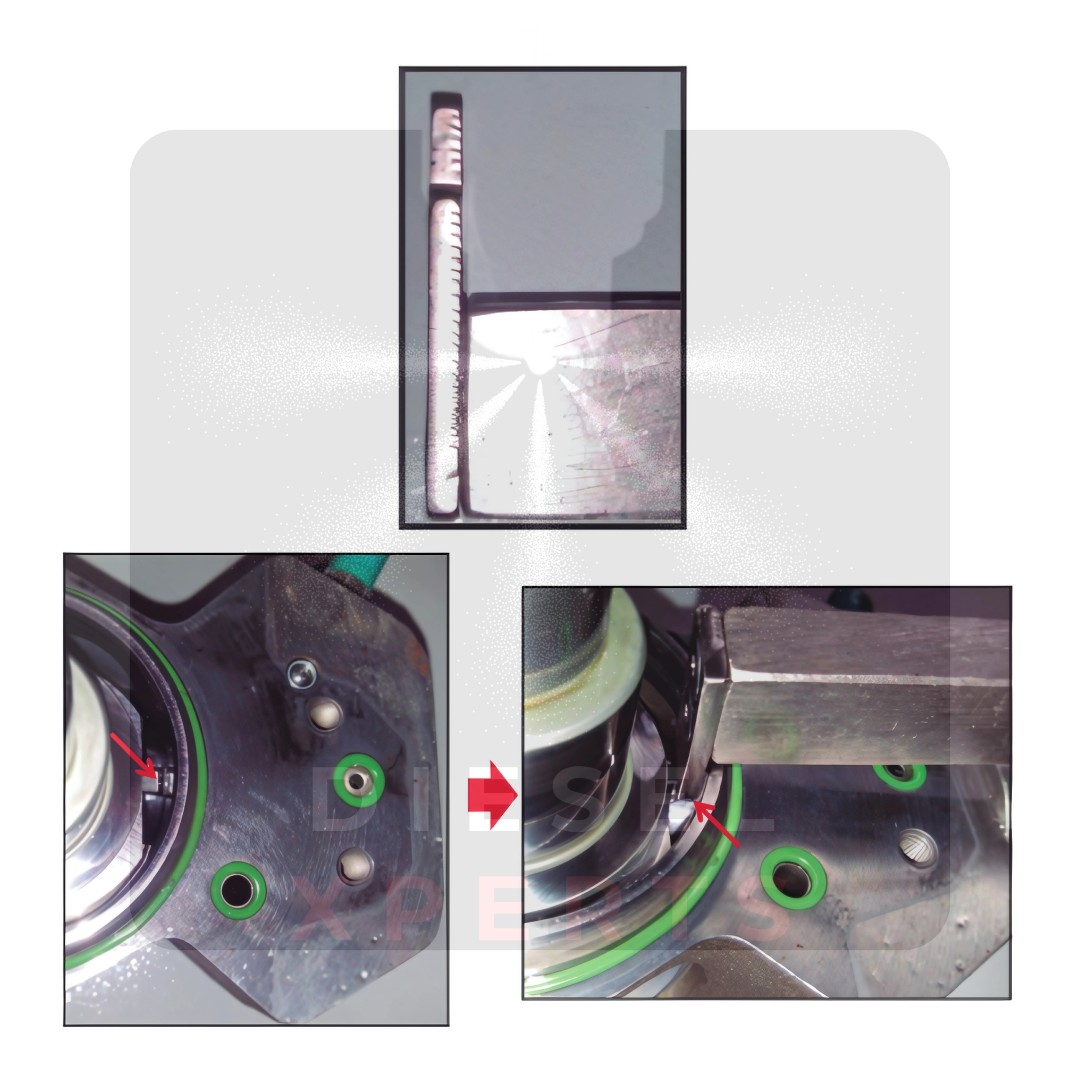

How It Works

1. Rotate the pump shaft to relieve tension on the pistons and align properly.
2. Insert the tool base into the piston port and rest the support disk on the pump face.
3. Use the handle to apply gradual force and extract the internal element cleanly.

Note: Never force the handle. Ensure alignment to avoid damage to the pump body.

Technical Specifications

• Tool Code: 323.01.57
• Material: Hardened Steel with CNC Precision
• Application: Disassembly of Bosch CP3 Internal Elements (Pistons & Sleeves)
• Sold: Individually
