CP3HS3 Pumps - Diesel Pump Element Disassembly Tool

SKU: DX32301571
Compatibility: Bosch CP3 HS3 (Euro 5) Diesel Fuel Injection Pumps
Brand: Diesel Xperts
Category: Diesel Diagnostic Tools & Fuel System Service Equipment

Product Overview

The Diesel Xperts 32301571 Disassembly Tool is purpose-built for the CP3 HS3 Euro 5 diesel fuel pump. This tool is engineered to safely remove internal elements—such as pistons and sleeves—without causing damage to the pump body or internal surfaces. It provides precise alignment and controlled pressure to streamline maintenance and rebuild procedures.

Note: This tool is sold individually. A complete disassembly typically requires a set of 3 tools used simultaneously for full support.

What's Included

• Handle: Ergonomic knob to apply tension gradually
• Support Disk: Rests against the pump surface for even force distribution
• Support Base: Designed for CP3 HS3 Euro 5 piston head geometry

Key Features

• Designed for Bosch CP3 HS3 (Euro 5) diesel injection pumps
• Safely removes internal pistons and sleeves without damaging the housing
• High-strength tool with CNC-machined precision
• Used in professional diesel repair and training facilities
• Built to handle repeated workshop use with consistent performance

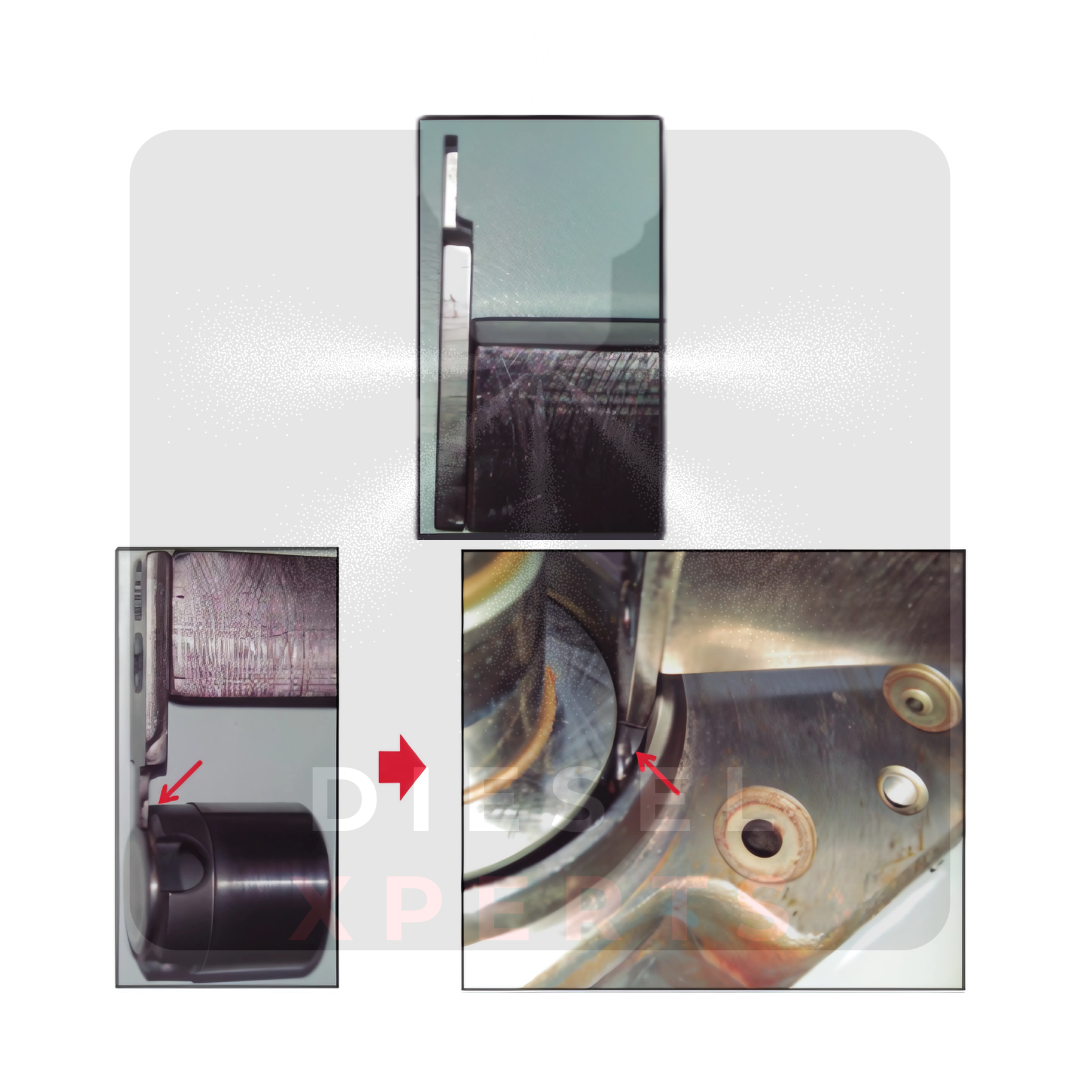

How It Works

1. Rotate the pump shaft to reduce internal tension and align the piston correctly.
2. Place the support base onto the piston head and position the support disk on the pump body.
3. Turn the handle to apply even pressure and release the piston for removal.

Tip: Always align the piston correctly and apply pressure gradually to avoid damaging internal parts.

Technical Specifications

• Tool Code: 32301571
• Material: Hardened Steel
• Application: Disassembly of CP3 HS3 (Euro 5) Internal Pump Elements
