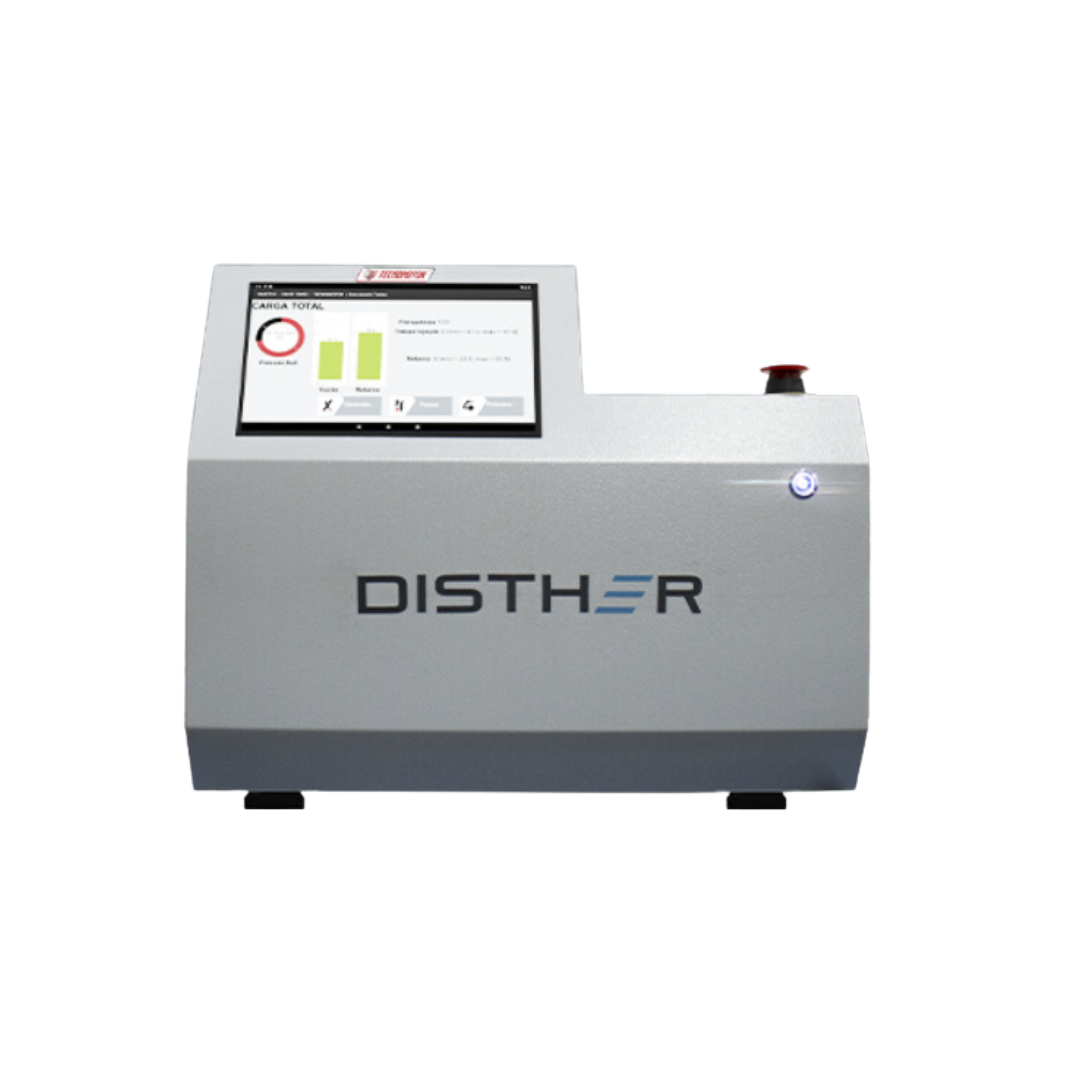

Enhance Your Diesel Testing Capabilities with the TM581 Disther Module

The TM581 Disther by Tecnomotor is a compact, high-tech module designed to upgrade your existing universal test benches, enabling precise control and measurement of pressure and flow in Diesel Common Rail systems. This integration enhances the reliability and accuracy of high-pressure pump tests, delivering unparalleled results in the diesel diagnostic industry.

Key Features

• Advanced Valve Actuation: Facilitates synchronized actuation of pressure valves, allowing for comprehensive testing of high-pressure pumps, including models like Denso HP5 (Toyota Hilux) and Caterpillar (326-4634).
• Digital Pressure and Flow Measurement: Incorporates digital sensors for high-precision measurement, ensuring accurate diagnostics and performance evaluations.
• Guided Diagnostic Test Plans: Features exclusive diagnostic test plans that guide users through performance analyses of internal pump components, streamlining repair processes.
• Manufacturer Reference Parameters: Utilizes official reference parameters from manufacturers such as Bosch, Delphi, Denso, and Caterpillar, ensuring tests meet industry standards.
• 10.1” Touch Screen Display: Equipped with a user-friendly interface for intuitive operation and real-time data monitoring.
• Wi-Fi Connectivity: Supports online updates and information exchange, keeping your system current with the latest diagnostic protocols.

Technical Specifications

• Power Supply: 220V, 60Hz
• Power Consumption: 350W
• Display: 10.1” (1280x800) Touch Screen
• Operating System: Android 8.1
• Connectivity: Wi-Fi, USB, HDMI
• Input Fluid Filters: 40µ
• Weight: 46.3 lbs (21 kg)
• Total Weight with Hoses and Cables: 54.7 lbs (24.8 kg)

Integration Requirements for Test Benches

• Test Fluid Temperature Control: Maintain between 107.6°F and 129.2°F (42°C and 54°C)
• Minimum Fluid Capacity: 5.3 gallons (20 liters)
• Test Fluid Feed Pressure Control: Up to 72.5 psi (5 bar)
• Speed and Rotation Direction Control: Essential for accurate testing
• Mechanical Flywheel: Minimum weight of 44 lbs (20 kg)
• Electric Motor Power: Minimum of 10 HP

What's Included?

• TM581 Disther Module
• Pressure rail and holder
• Inlet vacuum meter
• Necessary harnesses and hoses
• Comprehensive user manual

Why Choose the TM581 Disther?

• Enhanced Diagnostic Capabilities: Transforms your existing test bench into a sophisticated system capable of advanced diagnostics.
• Cost-Effective Upgrade: Adds modern functionalities to your current equipment without the need for a complete overhaul.
• Comprehensive Support: Backed by Tecnomotor's commitment to quality and innovation in diesel diagnostics.

One-Year Limited Warranty

The TM581 Disther comes with a one-year limited warranty, covering defects in materials and workmanship. This ensures your investment is protected, and you can rely on Tecnomotor's support for any warranty-related concerns.

Shipping & Availability

• Condition: Brand new, factory-sealed
• Shipping: Available exclusively in the United States
• International Inquiries: For customers outside the U.S., please contact us with your information, and we will direct you to the appropriate distributor in your region.
